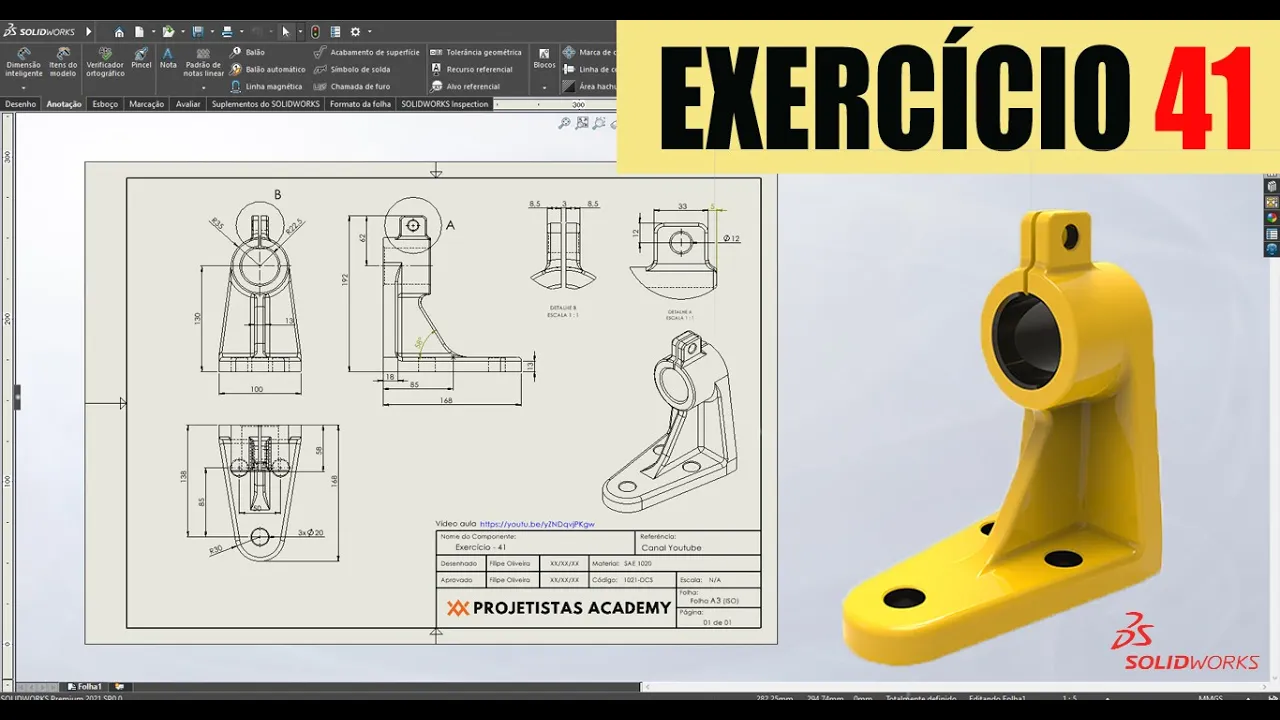

SOLIDWORKS PARA INICIANTES - EXERCÍCIO 41

SolidWorks Practice Session

Introduction to the Lesson

• Felipe welcomes viewers to another SolidWorks lesson, emphasizing the importance of practicing regularly to retain knowledge.

• He advises that consistent practice is crucial; taking breaks can lead to difficulties in using the software later on.

Importance of Regular Practice

• The session focuses on Exercise 41 out of a total of 41 exercises available for free on his channel.

• Felipe encourages viewers who haven't completed all exercises to do so, highlighting additional content available on metal sheets and surfaces.

Resources for Learning

• A PDF resource is provided for technical drawing practice, allowing students to have materials at home for further study.

• Felipe promotes his SolidWorks course at Projetistas Academy for those looking to deepen their understanding and skills in the software.

Starting the Modeling Process

• The modeling session begins with Felipe demonstrating how to create a new drawing from scratch, focusing on simplicity and efficiency.

• He explains the layout of views including front, top, side, and detailed views which will be used in this exercise.

Step-by-Step Drawing Instructions

• Using the top plane as a base, he initiates sketching by selecting a midpoint line starting from the origin.

• After creating a triangle shape, he aligns points vertically using constraints for precision in design.

Dimensioning Techniques

• Felipe discusses setting dimensions such as width (100mm), radius (30mm), and other critical measurements necessary for accurate modeling.

• He emphasizes calculating distances correctly by considering existing shapes within the sketch before finalizing dimensions.

Finalizing Sketch Elements

• The process includes adding circles with specific diameters (20mm), ensuring they are equally spaced based on given distances (50mm apart).

• Alignment techniques are demonstrated through symmetry commands that help maintain balance in design elements.

Creating Features from Sketches

• After completing sketches, Felipe moves towards creating features like extrusions or cuts based on defined parameters.

• He highlights important aspects such as maintaining proper alignment and dimensioning throughout the modeling process.

Creating a 3D Model in SolidWorks

Initial Setup and Sketching

• The process begins with placing a 15mm dimension on the base of the piece, confirming the command to finalize the initial setup.

• A sketch is created by selecting the back face and using "Convert Entities" to copy lines from that face, allowing for accurate replication of geometry.

• Two concentric circles are drawn with outer diameter 35mm and inner diameter 22.5mm; dimensions are set using intelligent dimensioning tools.

Centering and Adjustments

• The center of the circles is aligned vertically with respect to the origin, ensuring proper placement within the model.

• A line is drawn from one circle's center to another, creating symmetry; entities are mirrored for efficiency in design.

Adding Features

• A feature called "Rib" is introduced with a thickness of 15mm; areas are selected carefully to ensure correct contour selection.

• An additional rib feature is created extending outward, with dimensions set at 30mm and an overall length of 55mm.

Creating Additional Elements

• A new rib feature is added on a right plane, utilizing specific angles (58°) and distances (85mm), showcasing precise control over geometry.

• The rib tool confirms settings for thickness (10mm), demonstrating ease in adding structural elements.

Finalizing Design Details

• An ear-like structure at the top requires careful selection of planes; rectangle dimensions are set at 3mm thick to accommodate future features without overlap.

• Intelligent dimensioning ensures that all parts fit correctly within specified limits, emphasizing precision in modeling practices.

Addressing Challenges

• Height constraints for features are established based on existing geometry; adjustments made when necessary highlight problem-solving skills during design.

• Creative solutions arise when standard references aren't available; users learn to create their own reference points for accurate measurements.

Designing with Creativity and Precision

Importance of Decision-Making in Design

• The instructor emphasizes that not all design elements will be provided directly, encouraging students to develop their creativity and decision-making skills.

• Students are urged to practice and make mistakes during training rather than in a professional setting, highlighting the value of learning through experience.

Learning from Mistakes

• The instructor observes that some students attempt to work from PDFs without attending classes, leading to confusion. He stresses the importance of engaging with lessons for better understanding.

• A specific example is given where the instructor demonstrates how small changes (like radius adjustments) can significantly impact the overall design.

Technical Skills Development

• The process of creating holes in designs is discussed, including dimensions and centralization techniques.

• Techniques for finding center points in circles are explained, showcasing practical methods for achieving precision in designs.

Calculating Dimensions Effectively

• The instructor discusses calculating total thickness using simple arithmetic instead of relying on calculators, promoting self-sufficiency in technical tasks.

• SolidWorks is mentioned as a helpful tool for confirming commands and calculations efficiently.

Finalizing Design Elements

• The discussion shifts to finishing touches like adding fillets (radii), which are typically done at the end of the design process for ease.

• The importance of making these adjustments before final cuts is highlighted to ensure smooth transitions between different parts of the piece.

Practical Application and Adjustments

• A step-by-step guide on creating features such as grooves is provided, emphasizing intelligent dimensioning throughout the process.

• Troubleshooting tips are shared regarding defining heights and ensuring all elements are properly constrained within designs.

Refining Details

• Techniques for visualizing hidden lines during design work are discussed, aiding clarity when working with complex shapes.

• The necessity of creating multiple cutting directions based on plan orientation is explained as part of effective modeling practices.

Enhancing Aesthetic Features

• Finally, attention turns to aesthetic details like radii on edges. Different sizes are tested to achieve a natural look while maintaining structural integrity.

How to Enhance Your Design with Fillets and Chamfers

Understanding the Process of Adding Fillets

• The speaker demonstrates selecting a line in a design software, emphasizing the importance of making precise adjustments for better aesthetics.

• He explains that choosing the right fillet size requires practice and experimentation, encouraging viewers to train their eyes to recognize appropriate measurements.

• Viewers are invited to share their own designs after applying learned techniques, fostering community engagement through email or Instagram.

Techniques for Improving Aesthetics

• The speaker discusses removing edges to create a more visually appealing piece by adding fillets, highlighting how this can enhance overall design quality.

• He points out an error in chamfering within the design process and corrects it by focusing on specific edges rather than faces.

Finalizing the Design

• After completing adjustments, he shows how to visualize the entire design effectively using different viewing options available in the software.

• The speaker applies color to the component, specifically choosing a green shade that is visually pleasing and commonly used in designs.

Community Engagement and Learning Opportunities

• He encourages viewers who enjoyed the content to like and share it, explaining how this helps distribute educational material more widely.

• An invitation is extended for viewers to join study groups on WhatsApp and Telegram, promoting collaboration among learners at various skill levels.
