Understanding Buckling in Slender Bars and Columns

Introduction to Buckling Phenomenon

• The video introduces the concept of buckling in slender bars and columns, explaining it intuitively through Euler's equation for a simple case.

• It highlights that slender bars under compression can experience buckling at loads significantly lower than their tensile strength.

Characteristics of Buckling

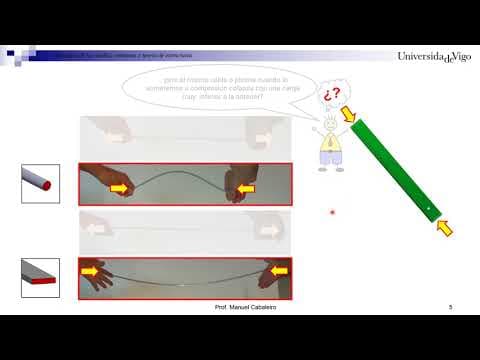

• Buckling is described as an instability phenomenon occurring in slender compressed elements, characterized by significant transverse displacements relative to the direction of compression.

• As deformation increases due to compressive load, moments develop within the bar, exacerbating further deformation until collapse occurs.

Critical Load and Euler's Equation

• The critical load (P_cr), where stable equilibrium transitions to instability, is defined by Euler's equation.

• The modulus of elasticity (E) plays a crucial role; materials with higher elastic moduli resist buckling better.

Moment of Inertia Considerations

• The minimum moment of inertia (I_min), particularly about the weak axis (Z-axis), is essential for calculations; greater I_min values enhance resistance to buckling.

• Euler’s equation incorporates a factor (α), dependent on support types, affecting the effective length for buckling calculations.

Support Conditions and Effective Length

• For pinned-pinned supports, α equals 1; for fixed-pinned conditions, α adjusts based on observed deformations.

• Different configurations yield varying α values: 1/√2 for fixed-pinned and 2 for fixed-free setups.

Validity and Safety Factors in Calculations

• Euler’s formula applies strictly to perfectly straight elements with collinear loading along their axes; real-world deviations necessitate safety coefficients during design.

• It's crucial to ensure that calculations remain within elastic limits since exceeding these alters material behavior from linear elasticity.

Example Calculation of Critical Load

• An example illustrates calculating critical load using specific parameters: fixed-pinned support, section dimensions 15x2 mm, length 500 mm, E = 65,000 MPa, allowable stress = 150 N/mm² with a safety factor of 2.

Final Verification Steps

• After determining moments of inertia about both axes and substituting into Euler’s equation with appropriate α value yields a critical load result.

• A comparison between maximum permissible loads versus critical loads confirms validity; if critical load is less than maximum allowable stress limit before yielding occurs.

Conclusion on Safety Factor Application

• Applying the safety factor results in an admissible maximum load calculation which ensures structural integrity under expected service conditions.
