Introduction to Fiber Optic Communication

The group introduces the topic of fiber optic communication, outlining key areas to be covered in their presentation.

Understanding the Basis of Fiber Optics

• Fiber optics originated from laser technology, aiming to address light loss issues within optical fibers.

• Researchers focused on reducing attenuation by minimizing light absorption and scattering caused by impurities in the glass core.

Evolution of Optical Fibers

• Early fibers had high attenuation rates, but advancements led to significant reductions through purer glass manufacturing.

• Innovations by Schutz, Keck, and Maer improved attenuation rates using high-purity fused silica glass.

Historical Development of Fiber Optics

A video demonstration from 1966 showcases early experiments in fiber optic communication.

Milestones in Fiber Optic Development

• Initial experiments demonstrated the potential for transmitting large amounts of data over long distances using fiber optics.

• The invention of the helium-neon gas laser enabled efficient light transmission through single-mode fibers.

Technical Characteristics of Optical Fibers

Exploring the technical aspects and construction of optical fibers for data transmission.

Construction and Specifications

• Optical fibers consist of a silica glass core surrounded by protective acrylic coating, with varying refractive indices for efficient light movement.

• Different wavelength regions like 1310nm and 1550nm offer specific advantages in terms of lower losses and dispersion characteristics.

Calculating Attenuation in Optical Fibers

Delving into the calculation methods for attenuation in optical fiber systems.

Attenuation Calculation Process

• Factors such as connectors, splices, cable length, and system margins influence overall attenuation calculations.

Fiber Optics: Principles and Applications

In this section, the speaker explains the fundamental principles behind fiber optics, focusing on the phenomenon of refraction and its role in signal transmission through optical fibers.

Understanding Refraction in Fiber Optics

• Refraction occurs when a light beam transitions from one medium to another, such as from air (N1) to silica (N2) in optical fibers.

• Light undergoes dispersion and deviation due to refraction, resulting in a refracted ray with an angle different from the incident angle.

• The refractive index (N1/N2) of the medium determines how much light is refracted within the fiber optic, crucial for maintaining signal integrity over long distances.

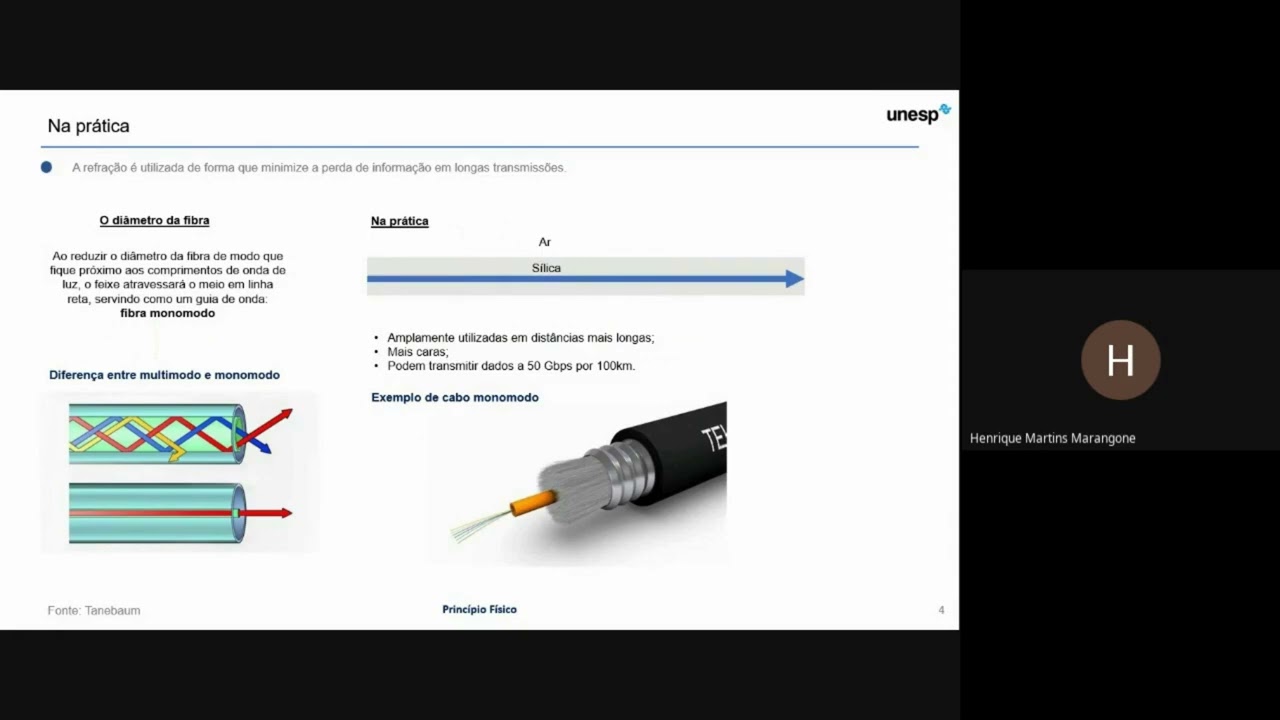

Signal Transmission in Optical Fibers

• Light remains confined within the silica core of the fiber optic, ensuring minimal signal loss and enabling long-distance transmission without information degradation.

• To achieve optimal transmission efficiency, reaching the critical angle is essential to keep light waves within the fiber core without escaping or dispersing.

• Various critical angles can be utilized in multimode fibers for efficient data transmission, highlighting their versatility compared to monomode fibers.

Evolution of Fiber Optics Technology

This segment delves into the historical development of fiber optics technology, tracing its origins back to experiments on light transmission through transparent tubes and its modern applications.

Historical Milestones

• Pioneering physicists like Robert Hook and Christian Huygens experimented with light transmission through transparent tubes in the 17th century.

• Engineers John Bird and Hansel patented fiberscope using fiberglass for medical illumination, later repurposed for diverse inspection tasks.

• Indian physicist Narinder Singh Kapany's research on light transmission through glass fibers laid foundational work for modern fiber optics technology.

Commercial Adoption and Technological Advancements

• The first commercial installation of fiber optics occurred in the Netherlands during the 1970s, marking a significant milestone in optical communication history.

• Subsequent advancements in the 1980s revolutionized fiber optics by enhancing cost-efficiency and boosting global data transmission capacities.

Fiber Optics: Applications and Infrastructure in Brazil

The transcript discusses the dominance of fiber optics in telecommunications, internet, and data transmission due to its speed, reliability, and scalability. It delves into the history of fiber optics in Brazil, highlighting key milestones such as the manufacturing of the first fiber by Instituto de Física GB watching da Unicamp in 1977.

Fiber Optics Applications

• Fiber optics are crucial for high-speed data transmission due to their ability to transmit over long distances with minimal signal loss.

• In medicine, fibers are used in endoscopy and surgical lasers for precise procedures.

• Industries utilize fiber optics for structural inspections and sensors measuring distance, temperature, and pressure.

• Military and government sectors rely on fiber optics for secure communication due to its safety and high transmission capacity.

Fiber Optics: Emerging Technologies and Architectures

This section explores emerging technologies within fiber optics such as multicore optical fibers that enhance data transmission capabilities. Additionally, it discusses flexible fiber optics designed for challenging installations like rural areas or underground ducts.

Emerging Fiber Optic Technologies

• Multicore optical fibers have multiple cores enabling independent data transmission paths within a single fiber.

• Flexible fiber optics use resilient materials allowing installation in inaccessible locations like rural areas or underground structures.

• Parasitic 5G networks leverage existing 5G infrastructure for radio signal transport between antennas and base stations, enhancing network coverage and performance.

Intelligent Optical Networks: Enhancing Management Efficiency

The discussion shifts towards intelligent optical networks empowered by artificial intelligence (AI) to optimize real-time network management. These networks offer enhanced security, reduced operational costs through automated systems replacing manual management.

Intelligent Optical Networks

• AI-driven optical networks optimize performance by identifying faults, optimizing data traffic flow, reducing human labor needs, thus improving user experience.

Fiber Optic Infrastructure Overview

In this section, the speaker discusses different types of fiber optic cables and their applications in optimizing infrastructure for efficient data transmission.

Types of Fiber Optic Cables

• Fiber optic cables are dedicated to specific users, enhancing security and reliability.

• Hybrid cables combine copper, fiber optics, and coaxial cables for cost-effective solutions and infrastructure optimization.

• Equipment like OLT receives data from internet providers, while ONU converts optical signals into electrical impulses for client installations.

• Components like DIO protect fibers in backbone cables, ensuring secure connections and distribution.

• Fiber adapters facilitate connecting optical connectors efficiently.

Regulatory Standards and Protocols in Fiber Optics

This part delves into the regulatory standards and protocols governing fiber optics installations in Brazil, emphasizing the importance of testing procedures for quality assurance.

Regulatory Standards

• Previously, there was a lack of standards for testing fiber optic installations leading to various issues like curvature problems and faulty connections.

• Introduction of NBR 16869 TR2 in 2021 standardized testing procedures for fiber optic links to ensure quality installations.

• The NBR 16869 TR2 focuses on equipment, tools, and processes required for testing both single-mode and multimode fiber optic links.

Complementary Norms

• Additional norms such as NBR 1565 (telecommunications cabling), NBR 16264 (residential structuring), NBR 16521 (industrial cabling), and NBR 16665 (data center cabling) complement the general testing standard.

Protocols in Fiber Optics

This segment explores common protocols like Ethernet and Fibre Channel used in fiber optics networks with a focus on data transmission speeds and management structures.

Ethernet vs. Fibre Channel

• Ethernet emphasizes packet-based structure with defined origins/destinations while Fibre Channel uses frames with sequence verification for data distribution.

• Ethernet offers data rates from 10MB to 400GB per second compared to Fibre Channel's range of 1Gbit to 128GB per second.
