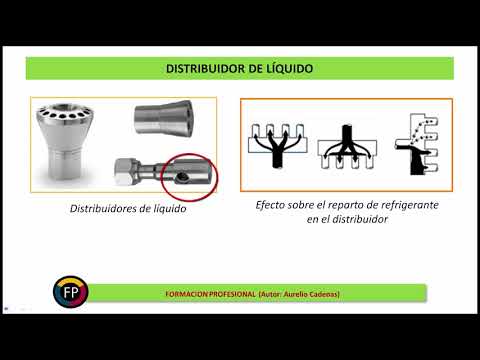

Clase 47: Para que sirve y como se instala el Distribuidor de Liquido

What is a Liquid Distributor and Its Function?

Introduction to Liquid Distributors

• The tutorial introduces the concept of liquid distributors, explaining their purpose and installation.

• It highlights the importance of managing pressure drops in evaporators by dividing the total tube length into several parallel circuits.

Functionality of Identical Circuits

• Identical circuits ensure equal fluid flow rates; this uniformity is achieved through the use of a liquid distributor.

• The design includes rods that connect to each circuit, maintaining equal pressure loss across all paths.

Pressure Management in Evaporators

• The system ensures that refrigerant expansion occurs at the rod exits, resulting in higher exit pressures compared to evaporator outputs.

• A thermostatic expansion valve with external pressure equalization is necessary for effective operation.

Installation Guidelines for Liquid Distributors

Positioning Considerations

• Liquid distributors are typically installed vertically to mitigate gravitational effects on liquid-vapor mixtures at valve exits.

• An upward vertical position is recommended for optimal performance, as demonstrated in an example image.

Pressure Loss Specifications
