Introduction to Graphics Cards

Overview of Graphics Cards

• The discussion begins with an introduction to graphics systems, focusing on dedicated graphics cards, which are known for their superior graphical power and features compared to integrated graphics.

• A distinction is made between dedicated (discrete) graphics cards and integrated graphics found within CPUs. Dedicated cards are external circuit boards housing a GPU.

• Integrated graphics are typically more limited due to space constraints within the CPU, resulting in lower graphical performance.

Functionality and Connection

• Dedicated graphics cards connect via PCI Express x16 slots, allowing for greater processing capacity suitable for gaming and high-performance workstations.

• Integrated GPUs handle basic graphical tasks but lack the power needed for demanding applications like gaming or video editing.

Advantages of Dedicated Graphics Cards

• The internal architecture of CPUs often includes a significant portion dedicated to handling graphical tasks, leading to direct communication between the CPU and GPU.

• While integrated solutions reduce costs by eliminating the need for separate hardware, dedicated cards ultimately provide better performance in rendering high-resolution images and complex textures.

Components of Dedicated Graphics Cards

Structure and Design

• Dedicated graphics cards consist of a GPU chip, cooling systems (like heatsinks), and memory designed specifically for enhancing image rendering capabilities.

• Standard connections include PCI Express x16 slots that facilitate higher bandwidth necessary for effective data transfer between the CPU and GPU.

Role of the GPU

• The GPU acts as the primary component responsible for graphic processing; it is distinct from the CPU's internal graphic capabilities yet works closely with it during operations.

• Additional circuitry supports the GPU by managing signal output while also providing independent memory that accelerates image rendering processes.

Rendering Process Explained

Image Rendering Mechanics

• Rendering involves converting vector-based images defined by geometric shapes into visual representations on screen through complex calculations performed by the GPU.

• The process combines various elements such as textures and 3D geometry to create detailed visuals in real-time applications like games or simulations.

Market Leaders in Graphics Technology

• NVIDIA and AMD dominate the global market for GPUs, with minimal competition. Their chips are utilized across various manufacturers who design unique printed circuit boards (PCBs).

Manufacturing Variations

Customization by Manufacturers

• Different manufacturers produce customized versions of GPUs from NVIDIA or AMD, incorporating varying amounts of memory, bus speeds, and cooling solutions tailored to enhance performance further.

Understanding GPU Architecture and Functionality

Integration of Transistors and Lithography

• The integration of transistors on silicon through lithography is fundamental in semiconductor technology, where the design varies based on architecture to arrange transistors into functional blocks.

Graphics Processing Units (GPUs) and Rendering

• GPUs are designed to generate graphical images, transforming geometric problems into rendered 3D images displayed on screens. This process involves complex calculations handled by numerous cores.

• NVIDIA's architecture features thousands of small cores, known as CUDA cores, which specialize in rendering portions of images, significantly enhancing graphical performance compared to traditional CPUs.

Core Count and Performance

• Some graphics cards can have dual GPUs, further increasing graphical processing power. For example, a card may feature 3584 CUDA cores for enhanced performance.

• The NVIDIA GTX 1080 exemplifies this design with a high core count that allows for efficient image rendering and processing.

Memory Specifications in GPUs

• Modern graphics cards contain millions of transistors and operate at specific frequencies. They also include dedicated memory (VRAM), separate from system RAM, crucial for storing textures and images before rendering.

Resolution Capabilities

• Graphics cards support various resolutions; for instance, some can handle 4K resolution at different refresh rates depending on their specifications.

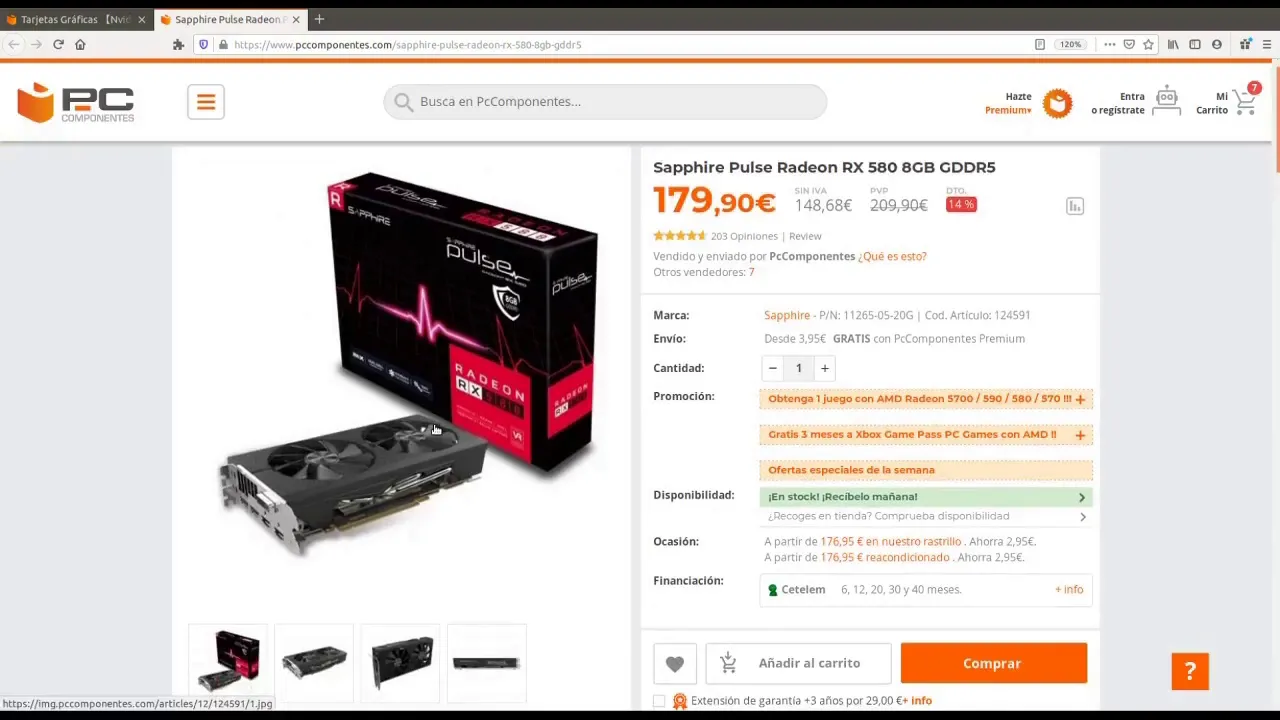

• A Sapphire Radeon RX 500 series card supports up to 3840x2160 resolution (4K), showcasing its capability to deliver high-quality visuals.

Importance of VRAM

• VRAM is essential for storing textures and geometric data necessary for rendering images on screen. It plays a critical role in ensuring smooth gameplay experiences by managing large amounts of visual data efficiently.

How 3D Rendering Works in Video Games

Understanding 3D Rendering

• The video explains how 3D rendering is generated in video games, focusing on the geometry of objects and their composition from vector images.

• Objects are made up of polygons and geometric figures, which are rendered to display on screen. A more powerful graphics card enhances the quality of rendering.

• All visible figures consist of small polygons or triangles that combine to create a 3D relief effect, requiring rapid generation for real-time movement without noticeable artifacts.

Geometry and Textures

• An example is given with an elephant model containing over 530,000 polygons that contribute to its detailed 3D appearance.

• Geometric data is stored in memory for quick access by the GPU during rendering, allowing for efficient visualization without burdening system RAM.

• Textures add color and detail to each polygon, enhancing realism through various effects like shading and surface texture.

Memory Requirements for Rendering

• The importance of having sufficient memory is highlighted; it depends on image resolution—higher resolutions require more memory.

• Typical VRAM requirements include around 4GB for 1080p resolution and between 6GB to 8GB for higher resolutions like 1440p or 4K.

Performance Factors

• While VRAM size impacts performance at high resolutions, the speed of texture rendering also plays a crucial role in frame rates per second (FPS).

• The GPU's capability to generate frames per second significantly influences overall performance; types of memory such as GDDR5 and GDDR6 are discussed regarding their efficiency.

GPU Functionality and Overclocking

• Key characteristics include nominal frequency (normal operation speed) versus maximum boost frequency (overclocked speed), which can enhance performance under certain conditions.

• Overclocking generates additional heat due to increased GPU usage; thus, GPUs have built-in mechanisms to manage this heat while maximizing performance when possible.

Understanding GPU Performance and Thermal Management

Importance of Frequency in GPU Functionality

• High frequency operation can lead to excessive overheating of the GPU, risking performance issues such as freezing or image artifacts.

• Comparing GPUs from different generations (e.g., NVIDIA 1080 vs. 2080) requires caution; internal architecture differences mean that lower frequencies may yield better performance in newer models.

Key Parameters for 3D Rendering

• Techniques like "road and" operations are crucial for understanding rendering capabilities, including how many rendering operations can be bypassed during texture mapping.

• The term "Thermal Design Power" (TDP) refers to the maximum heat output (in watts) a GPU is designed to handle, which is essential for assessing cooling requirements.

Energy Consumption and Cooling Needs

• TDP is proportional to energy consumption; typically, energy usage exceeds the heat generated by the GPU.
