Curso SolidWorks Piezas y Ensamblaje Lección 9 Juntas

How to Assemble Valve Parts

The transcript discusses the process of assembling valve parts, focusing on detailed steps and measurements in millimeters.

Creating the Body Joint

• Initiating a sketch on the plant plane with two circles of 31 and 25 units using the origin as a reference point.

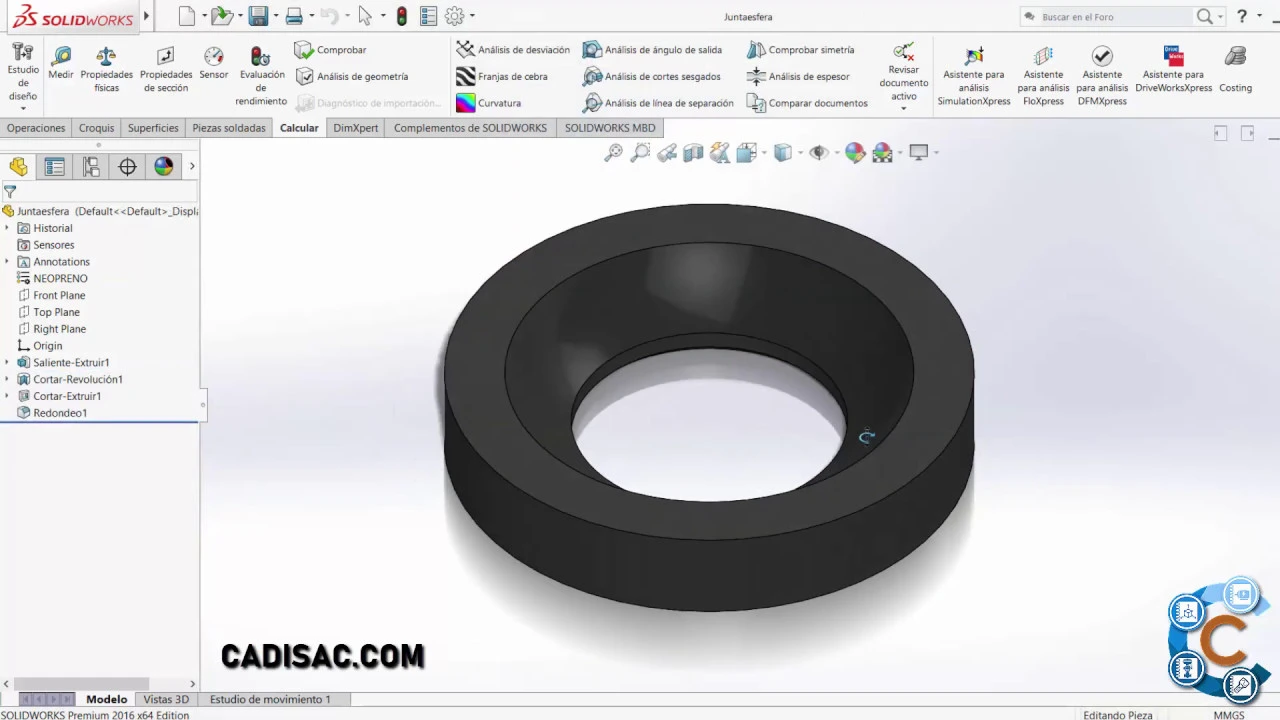

First Seal Assembly

• Using neoprene material for the first seal assembly, involving more steps than the previous joint.

• Starting with a sketch on the plant plane with circles of 23 and 12 units using an exclusion operation at a distance of 4 units.

Second Seal Assembly

• Beginning a sketch on the lower face, creating a circle with a diameter of 13 and excluding a cut at a distance of 0.5 from an edge, followed by rounding off at 0.5 units.

• Initiating an advanced plan sketch with a circle having a separation of 6.5 from its center to the top face and a diameter of 22.
